3D Resin & Silicone Mold Tips: Clarity, Finish & Durability

Post-curing your resin print is just the beginning. Getting crystal-clear transparency, bubble-free silicone molds, and professional surface finishes requires a few additional steps that most tutorials skip.

This guide covers the proven techniques for resin clarity, silicone mold preparation, and a specific water-based coating method for achieving maximum transparency with clear resin prints.

Quick Reference: Core Tips at a Glance

Resin Print Tips

• Always dry prints fully before applying any coating
• Use a UV curing station for even, complete curing — avoid uneven sunlight exposure
• Sand progressively through fine grits before coating for maximum clarity
• Avoid lacquer-based coatings — solvent evaporates too fast to penetrate effectively
• Do not use a heating oven to speed drying — heat affects transparency

Silicone Mold Tips

• Degas silicone before pouring to eliminate air bubbles that distort fine details
• Keep your workspace dust-free — particles embed in uncured silicone permanently
• Use mold release spray before every pour to extend mold life and ease demolding
• Store molds flat in a sealed container away from UV light

Working With Both Together

• Ensure resin prints are completely cured before pouring silicone over them
• Uncured or partially cured resin causes silicone inhibition — the silicone won't cure properly where it contacts the resin surface
• Clean prints thoroughly before using as silicone masters — surface contamination transfers directly to every mold cast

To make prints made with Simple Clear resin transparent after cleaning, you can follow these steps:

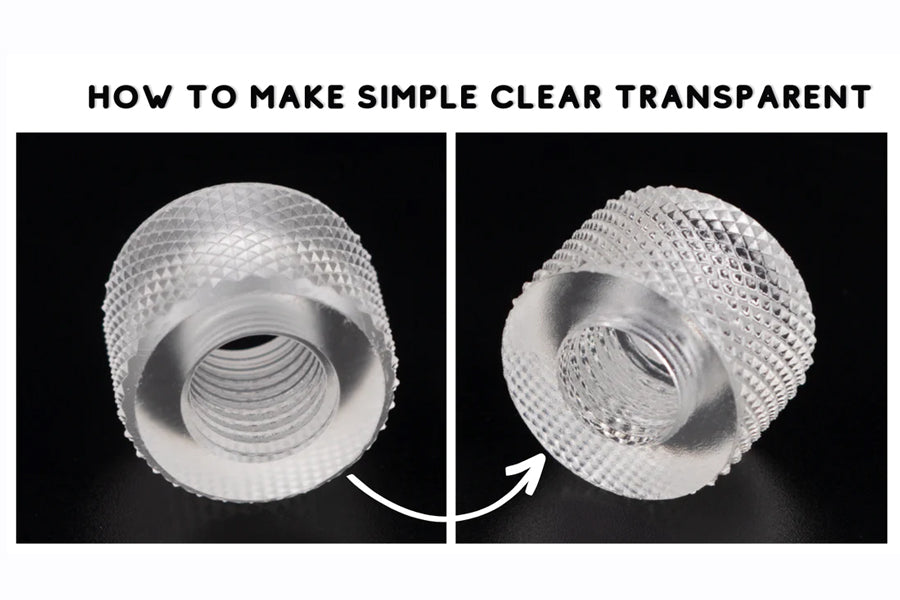

How to Make Clear Resin Prints Transparent

Standard post-processing leaves most clear resin prints hazy or semi-opaque. The method below, developed by @Kazuhisa SHOUSHIN, uses a water-based coating applied in thin layers to restore and enhance transparency without yellowing or surface damage.

What You'll Need

• Mild soap and water
• Hair dryer
• Water-based coating (spray-applicable)
• Spray gun
• Clean, dust-free workspace

Step 1: Clean the Prints

Clean the prints made with Simple Clear resin using a mild soap and water solution. Rinse them thoroughly with water and allow them to dry completely.

Step 2: Dry the Surface Completely

Use a hair dryer on a low heat setting to remove all surface water droplets. Pay particular attention to cavities, overhangs, and textured areas where water collects.

The print must be bone dry before coating begins. Any moisture trapped beneath the coating layer will create haze and prevent proper penetration.

⚠️ Do not use a heating oven. Elevated heat affects the transparency of cured resin and accelerates coating drying before it can penetrate the surface properly.

Step 3: Apply the First Coating Layer

Using a spray gun, apply a thin, even layer of water-based coating across the entire print surface.

Thin is critical here. Heavy application causes runs, uneven drying, and reduced clarity. A light mist coat that just wets the surface is the target.

Allow to dry naturally at room temperature for approximately 2 minutes.

⚠️ Do not use lacquer-based coatings. The solvent in lacquer evaporates too quickly — it dries on the surface before it can penetrate the resin, leaving a surface film rather than improving clarity from within.

Step 4: Repeat — Two More Coats Minimum

Apply two additional coats using the same method:

• Thin, even spray application
• 2-minute natural drying between each coat
• Total minimum time: ~6 minutes across 3 coats

You can continue applying additional coats beyond three if the transparency level isn't yet satisfactory. Each coat allows the water-based medium to penetrate slightly deeper into the resin matrix, progressively improving clarity.

Step 5: Inspect and Finish

Once the final coat has dried, inspect the print under good lighting. Check for:

• Even transparency across all surfaces
• No cloudy patches (indicates moisture was present or coating was applied too heavily)
• No runs or pooling in recessed areas

If transparency is uneven, apply one additional thin coat to the affected areas only.

Your prints are ready to use once fully dry and transparency meets your requirements.

Note:

It is important to dry the prints completely before applying the water-based coating to ensure proper adhesion.

Avoid using lacquer-based coating agents as they dry too quickly, and the solvent will evaporate before penetrating the interior.

Do not use a heating drying oven as it can affect the transparency of the prints. Allow the water-based coating to penetrate the resin as much as possible, delay the drying process and penetration speed, fully penetrate and improve transparency.

This method is provided by @Kazuhisa SHOUSHIN

Surface Preparation for Maximum Clarity

The coating method above works significantly better on a prepared surface. For the clearest possible result, sand before coating:

Sand wet where possible to reduce scratching and keep the surface cool. Wipe clean and dry completely before applying any coating.

Frequently Asked Questions

How do I make resin prints look crystal clear?

To make resin prints crystal clear, start by sanding the surface with progressively finer grits of sandpaper, then polish with a plastic polish or clear coat.

Ensure the print is fully cured and dry before applying any coatings. A thin, even layer of water-based coating can greatly enhance transparency without yellowing.

What are the best tips for using silicone molds with resin prints?

When using silicone molds, always degas the silicone before pouring to remove air bubbles that could distort details.

Apply a mold release spray to prevent sticking and extend mold life. Make sure resin prints are fully cured and clean before molding to avoid chemical inhibition.

Why does my silicone mold stick to resin prints?

Silicone molds may stick to resin prints if the resin isn’t fully cured or if no mold release agent is used. Uncured resin can chemically bond with silicone, making demolding difficult.

Using a proper release spray and ensuring complete curing will prevent sticking issues.

Can I use water-based coatings on silicone molds?

Water-based coatings are safe for resin prints but not typically used on silicone molds. Silicone’s nonstick surface prevents most coatings from bonding effectively.

Instead, focus on keeping molds clean, dry, and properly stored to extend their usability.
