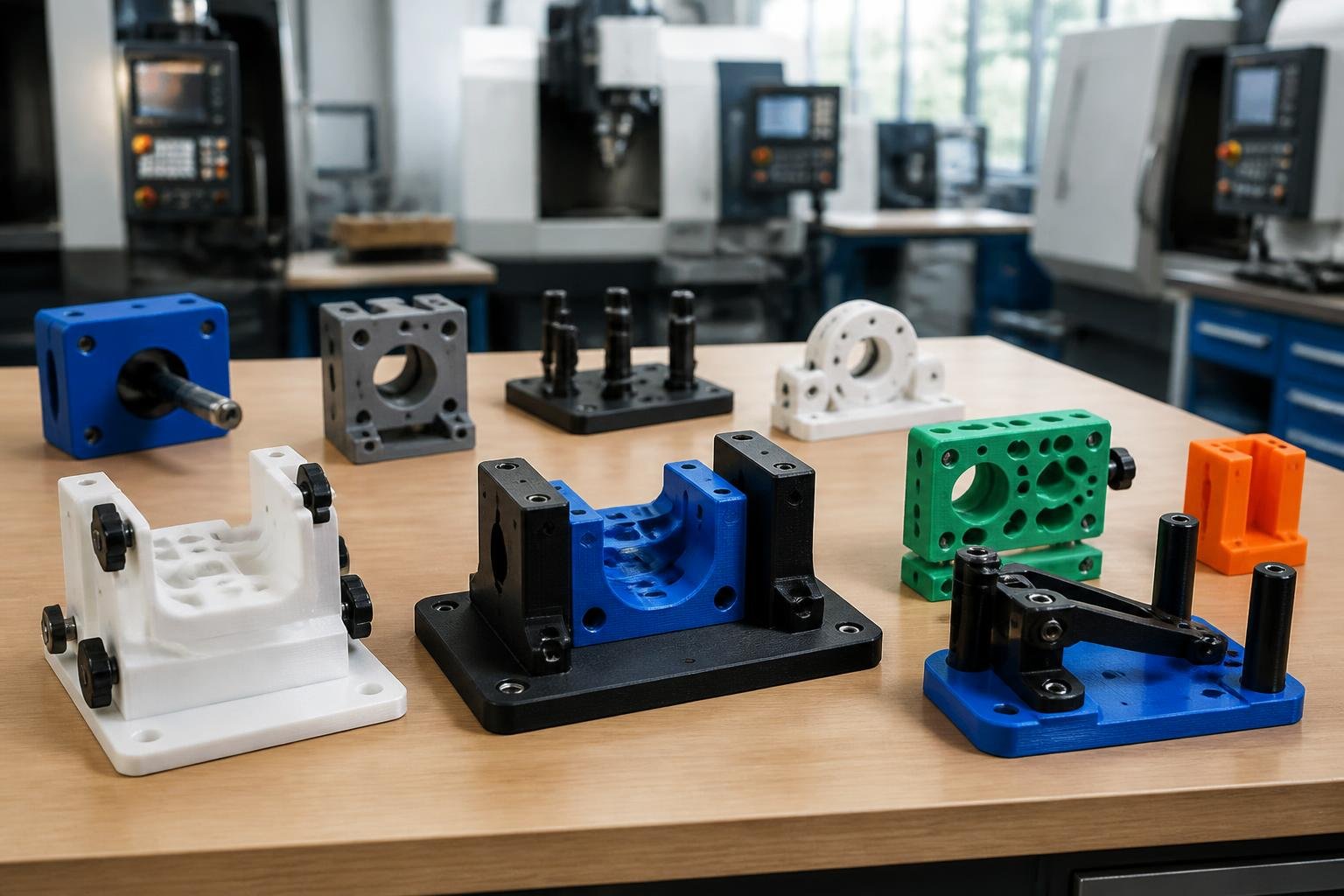

Instead of waiting on CNC shops for machined aluminum tooling, production teams can design a custom jig in CAD and have it on the factory floor the same day. When the product changes, the jig changes with it — just edit the file and reprint.
This guide covers what jigs and fixtures are, which materials work best for each application, design principles for effective tooling, and when to choose FDM versus resin printing.
- Speed advantage: 3D printed jigs go from CAD to floor in hours — machined tooling takes days or weeks.
- Cost savings: Replacing aluminum jigs with printed equivalents can cut tooling costs by 50–90%.
- Best structural material: Carbon fiber reinforced nylon is the top choice for high-stress production tooling.
- Non-marring surfaces: TPU contact pads protect finished parts from scratches during assembly.
- Resin for precision: Resin-printed jigs hit tighter tolerances (±0.05mm) than FDM — ideal for gauges and inspection fixtures.
- Design for replaceability: Every jig should be purpose-built and easy to reprint when it wears out.
What Are Jigs and Fixtures?
Jigs and fixtures are custom tools used in manufacturing and assembly to hold, guide, position, and secure workpieces. They're the unsung heroes of production floors — ensuring consistency and accuracy across thousands of identical operations.
Jigs
Jigs guide cutting, drilling, or machining tools to precise positions. A drill jig, for example, ensures every hole on every part lands in exactly the same location — every time.
Fixtures
Fixtures hold and secure workpieces during operations like welding, assembly, gluing, or inspection. A welding fixture keeps two components aligned while they're joined. An assembly fixture holds parts in position while fasteners are installed.
Other manufacturing aids in this category include alignment tools, go/no-go gauges, masking templates, bonding jigs, and surrogate parts for testing assembly lines.
Why 3D Print Instead of Machine?
Traditional jig manufacturing involves CNC machining metal or plastic stock — expensive, slow, and inflexible. 3D printing addresses all three problems at once.
Speed
A 3D printed jig goes from CAD file to finished tool in hours. CNC machining the same part — including programming, setup, and run time — takes days. Some automotive manufacturers have reported cutting lead times by over 90% after switching to printed tooling.
Cost
No machining setup, no toolpath programming, no specialized operator. Material costs for a printed jig are a fraction of machined aluminum. Multiple iterations cost only time and filament.
Design Freedom
3D printing creates geometries that CNC can't easily achieve — internal channels, lattice structures for weight reduction, conformal grips that match exact workpiece contours. This is especially valuable for ergonomic handles and lightweight handheld tools.
Iteration Speed
When a product design changes, the jig changes with it. Edit the CAD file, reprint, and you're running again. With machined tooling, design changes often mean starting from scratch.
Best Materials for Production Tooling
The right material depends on how the jig will be used, how long it needs to last, and what forces it will face.
General-Purpose Tooling
ABS and PETG handle most general jig and fixture needs. They're affordable, easy to print, and tough enough for repeated use in assembly operations. ABS has excellent impact resistance and can be vapor-smoothed for a professional finish.
High-Strength Applications
Carbon fiber reinforced filaments deliver stiffness that approaches aluminum at a fraction of the weight. Siraya Tech's PPA-CF and ABS-CF filaments are particularly effective for tooling that faces mechanical stress, repeated loads, or elevated temperatures.
These materials require a hardened steel nozzle and typically an enclosed printer with a heated chamber for best results.
Non-Marring Contact Surfaces
When jigs contact finished or painted parts, you need a material that won't scratch. TPU filament at Shore 95A provides a firm-but-soft contact surface.
Many manufacturers combine a rigid PETG or ABS jig body with TPU contact pads — the best of both worlds in a single tool.
Precision and Detail
SLA/DLP resin printing produces jigs with tighter tolerances (±0.05mm vs. ±0.2mm for FDM), smoother surfaces, and isotropic strength. This makes resin ideal for gauges, inspection fixtures, and tooling where dimensional accuracy is critical.
Siraya Tech's Build resin is specifically designed for drillable, dimensionally stable parts that hold threaded inserts and fasteners well — a strong choice for fixtures that need hardware integration.
High-Temperature Environments
Tooling used near soldering stations, heated assembly processes, or injection molds needs heat resistance. Siraya Tech's Sculpt resin handles elevated temperatures where standard plastics would soften.
On the filament side, PPA and ABS-HT maintain structural integrity in high-heat environments where PETG would fail.
Design Principles for Effective Tooling
A well-designed jig is simple, accurate, and operator-friendly. Follow these guidelines to build tooling that actually works on a production floor.
- Match the workpiece geometry. Use the actual CAD model of the part to create conformal contact surfaces. This ensures precise alignment without excessive clamping force.
- Minimize weight. Operators pick up and move jigs hundreds of times per shift. Use lattice infill, hollowed sections, and optimized shapes to reduce weight without sacrificing strength.
- Include locating features. Pins, edges, and datum surfaces guide the workpiece into the correct position every time. Design these with tight tolerances (0.05–0.1mm) for consistent results.
- Add clearances for tools. If the jig is used during drilling, fastening, or inspection, make sure there's room for hands, tools, and measurement instruments. Tight access slows work and damages parts.
- Use color coding. Print different jig components in different colors to help operators identify correct placement and orientation at a glance.
- Design for replaceability. Jigs wear out. Design them so they can be reprinted and replaced in hours, not days.
FDM vs. Resin for Tooling Applications
Both technologies have their place on the production floor. The choice comes down to part size, tolerance requirements, and surface finish needs.
| Factor | FDM | Resin |
|---|---|---|
| Part size | Large (200mm+) | Small to medium |
| Dimensional accuracy | ±0.2mm | ±0.05mm |
| Surface finish | Layer lines visible | Smooth, isotropic |
| Impact resistance | High (with CF filaments) | Moderate |
| Multi-material | Yes (rigid + TPU) | No |
| Best for | Assembly jigs, handles, large fixtures | Gauges, inspection fixtures, precision alignment |
For many manufacturers, the right answer is both. Use FDM for large assembly jigs and handles, and resin for small precision fixtures and gauges.
Siraya Tech Materials for Production Tooling
When selecting materials for production tooling, you want proven reliability and consistent mechanical properties. Siraya Tech's Fibreheart engineering filament line covers the full spectrum of manufacturing needs.
- PET-CF — Excellent stiffness and chemical resistance for jigs exposed to oils and solvents.
- ABS-GF — High impact resistance for tools that take daily abuse on the production floor.
- Build Resin — Drillable and dimensionally stable, with excellent compatibility with threaded inserts for hardware integration.
Final Thoughts
3D printed jigs and fixtures give manufacturing teams faster iteration, lower costs, and design freedom that traditional machining can't match. Start with simple assembly aids, prove the value, and scale up to more complex production tooling as you gain confidence.
The ability to redesign and reprint a jig in hours — rather than wait days for a machine shop — is a real competitive advantage on any production floor.
Browse Siraya Tech's industrial filament collection and engineering resin lineup to find the right material for your next factory-floor tool.
Related Reading on Siraya
- Best Filament for Functional Parts
- Best Filament for Structural Parts
- Demystifying Fiber-Reinforced Filaments
- 3D Printing for Prototyping
- Best Carbon Fiber Filament: Buyer's Guide
Frequently Asked Questions
Are 3D printed jigs strong enough for manufacturing?
Yes. With the right materials, 3D printed jigs handle repeated daily use on production floors. Carbon fiber reinforced nylon and PETG are used in automotive, aerospace, and electronics manufacturing for tooling that lasts months of continuous use.
How much can you save by 3D printing jigs and fixtures?
Savings of 50–90% compared to CNC machined tooling are common. The biggest savings come from eliminating machining setup costs, reducing material waste, and cutting lead times from weeks to hours.
What is the best material for 3D printed jigs?
ABS and PETG work for most general-purpose tooling. Carbon fiber nylon is the strongest option for high-stress applications. TPU is used for non-marring contact surfaces that touch finished parts. Resin is preferred for precision gauges and inspection fixtures requiring tight tolerances.
Can 3D printed fixtures handle heat?
Standard PLA and PETG have limited heat resistance. For hot environments, use PPA, ABS-HT, or high-temperature resins like Siraya Tech's Sculpt, which handles elevated temperatures where standard plastics would soften.
How accurate are 3D printed jigs compared to machined ones?
FDM jigs achieve ±0.2mm accuracy, which is sufficient for most assembly and handling fixtures. Resin jigs achieve ±0.05mm, approaching CNC machining accuracy for small-to-medium parts. For very tight tolerance requirements, resin is the better choice.
Do I need a special 3D printer for tooling?
No. Any quality FDM or resin printer works for tooling production. For fiber-reinforced filaments, you'll need a hardened steel nozzle. For engineering resins, a standard 405nm LCD/DLP printer is sufficient. An enclosed printer with a heated chamber is recommended for ABS and nylon materials.
